PSR SX900 | SX920 Display Out - How to Connect External Monitor
- Written by Administrator
- Parent Category: Blog
- Category: Lessons, Tips and Tutorials

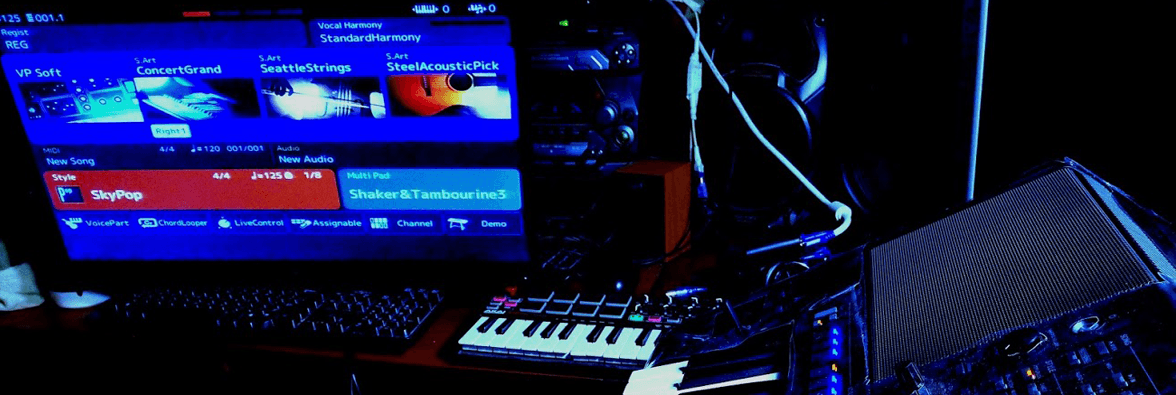

This tutorial will help you to connect External Computer Monitor or TV to your Yamaha PSR SX900, PSR SX920 or Yamaha Genos Keyboards.
Unfortunately on the new Yamaha PSR SX900, SX920 series and Yamaha Genos we cannot connect VGA or HDMI cable directly. But we can sill connect the keyboard to Monitor via USB to DEVICE by using additional USB Display adaptor.
In order to connect your PSR SX900 or PSR SX700 to monitor, you need to purchase additional USB Display adaptor USB to VGA, USB to DVI, USB to HDMI. Of course, this adapters available on Ebay or Amazon. You can also find it in local stores of your country or another online stores.
Compatible USB Display Adapter List for PSR-SX900, SX920 and GENOS
Yamaha have tested the devices listed below and believe them to work correctly with this instrument.
Please note that these devices might be updated and new versions released which may stop them from working
correctly with this product. For more information on these devices including availability, please consult the device
manufacturer.
Manufacturer | Model |
---|---|
Accell | J130B-001B |
BUFFALO | GX-HDMI/U2 |
Diamond Multimedia | BVU165 |
Damond Multimedia | BVU195 |
DIGITUS | DA-70833 |
DIGITUS | DA-70834 |
IO DATA | USB-RGB2 |
IO DATA | USB-RGB/D2 |
i-tec | USB2HDTRIO |
i-tec | USB2VGA |
Logitec | LDE-WX015U |
Plugable | UGA-165 |
TRENDnet | TU2-DVIV |
UGREEN | 40244 |
Display out Configuration

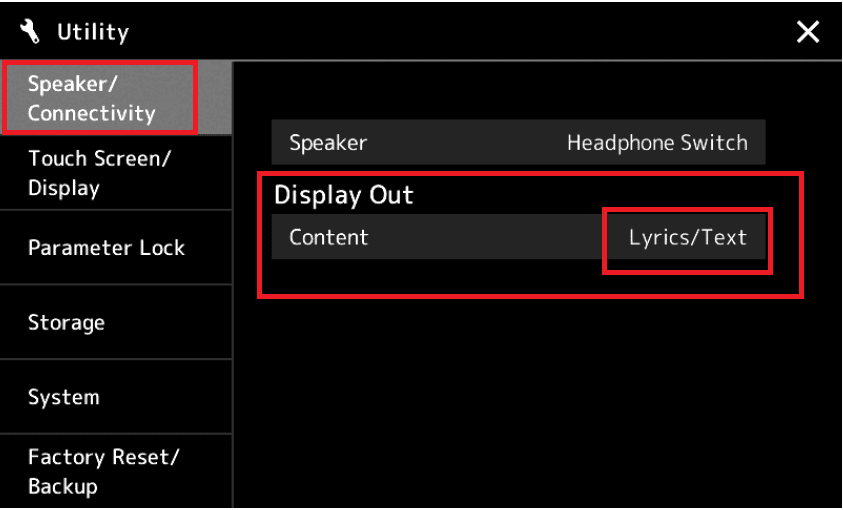

- Call up the operation display.
[MENU] -> [Utility] - Speaker/Connectivity -> Display Out -> Content
Determines the output contents via a USB display adaptor when it is connected.
- Lyrics/Text: Only the Song lyrics or text files (whichever you used last time) are output,
regardless of the display currently shown on the instrument. - Mirroring: The display currently shown on the instrument is output.
